level monitoring Tele Haase TLH4X 230V AC / Replacement Relay Type E3LM10

102.000017

EUR 102,00

incl. 19 % VAT excl. shipping costs

Product.Nr. 110644087447

Available, enough stock

delivery time 2-4 days

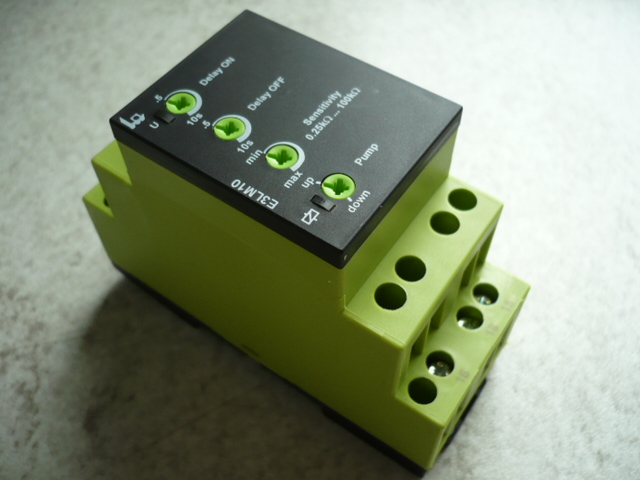

level monitoring Tele Haase TLH4X 230V AC / Replacement Relay Type E3LM10

Level monitoring device Tele Haase control Ges.mbH Type TLH4X 230V AC - for VEB Platforms - Car Stage - Control - control stations - switch - cabinet.





You are purchasing a unused fully functional Level monitoring relays. The exact amount you can enter below the price under number.

Description: Monitoring Relays in 2-phase systems - TREND series

- for conductive Liquids
- with two separately adjustable switch setting ranges and Release delay
- (Pump down or maximum monitoring / pumping or minimum monitoring)
- Nominal consumption 2 VA (1.5 W)
- Supply Voltage = 24 to 230V AC selectable transformer modules
- 1 changeover contact
- Width 45mm x 69mm x 65mm
- industrial design
- Operating voltage 230V AC
- Switching capacity AC 5a/250v (1250VA)
- Range 2phase (N) 250 V 50 Hz
- Degree of protection IP40
- Rated impulse voltage 2.5 kV
- Ambient temperature -25 - +55 ° C


Dimensions: Width 45mm x 69mm x 65mm.
