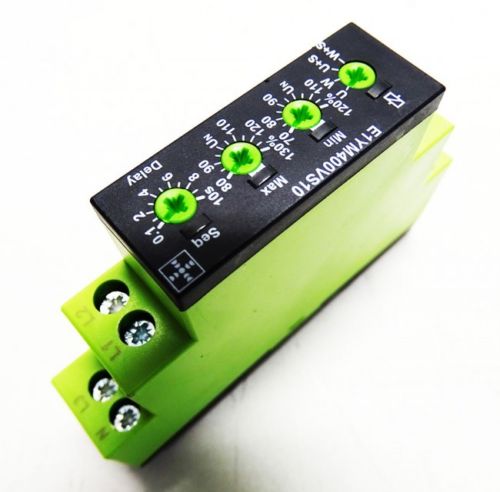

Tele Haase E1YM 400V S10 Voltage phase sequence monitoring

124.000023

EUR 124,00

incl. 19 % VAT excl. shipping costs

Product.Nr. 110644376765

Available, enough stock

delivery time 2-4 days

Tele Haase E1YM 400V S10 Voltage phase sequence monitoring

Monitoring relays / Monitoring relays Tele Haase Steuergeräte Ges.mbH Type E1YM 400V S10 replacement relay V2PM400Y / 230VS10 - for VEB Platforms - automotive stage - Car Stage - Control - control stations - switch - cabinet.





You are purchasing a unused fully functional Under voltage monitoring relays. The exact amount you can enter below the price under number.

Description: Monitoring Relays 1 & 3-phase mains - ENYA series

- Optional connection of the neutral conductor
- with adjustable thresholds and tripping delay
- Monitoring phase failure and phase sequence selectable via rotary switch
- Nominal consumption 8VA (1W)
- Supply voltage = measuring voltage 250V AC selectable transformer modules
- 2 change-over contact
- Width 35mm x 87mm x 60mm
- installation design
- Operating voltage 250V AC
- Switching capacity AC 5a/250v (1250VA)
- Measuring range 3-phase (N) 250V 48-63 Hz
- Degree of protection IP40
- Rated impulse withstand voltage 4 kV
- Ambient temperature -25 - +55 ° C


Dimensions: Width 35mm x 87mm x 60mm.
