monitoring relays Voltage Monitoring Tele Haase TPF 400V S4X for FH 1600/1 / FHB 12.1 lifting platform

Product.Nr.: 110643121703

EUR 83,05
incl. 19 % VAT

  • Currently not available Currently not available

product description

Tele Haase control devices for VEB platform Typ FH1600 - FH1600/1 - FHB 12.1.





You are purchasing a unused fully functional monitoring relay. The exact amount you can enter below the price under number.

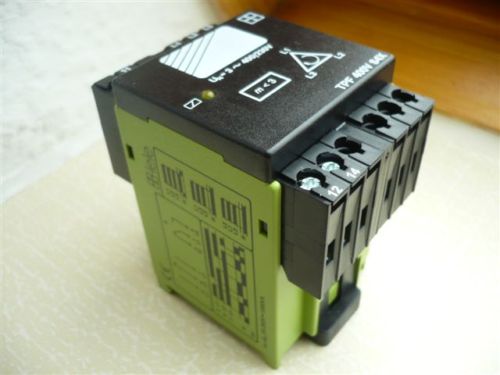

Description: Monitoring Relays 3-phase mains - TREND series

- Phase sequence and phase failure monitoring and asymmetry with fixed asymmetry
- Supply voltage = measuring voltage
- Contact type 1 change-over contact
- Width 45mm x 69mm x 65mm
- industrial design
- Operating voltage 400 / 230V AC
- Switching capacity 5A / 250V AC (1250 VA)
- Measuring range 3 phase (N) 400 V 50/60 Hz
- Degree of protection IP40
- Rated impulse withstand voltage 2.5 kV
- Ambient temperature -25 - + 55 ° C


Dimensions: Width 45mm x 69mm x 65mm.

Other parts available for purchase in our shop by clicking on the appropriate Shop Category. After you put the product to the cart, you can purchase additional products in our online shop. We also answer questions via email: admin@awt-shop.de or phone: +49(0)176/21193525 and +49(0)38295/774067.
