Monitoring voltage monitoring relays Tele Haase G2PF 400V S02

53.710055

EUR 53,71

incl. 19 % VAT excl. shipping costs

Product.Nr. 110637924072

Available, enough stock

delivery time 2-4 days

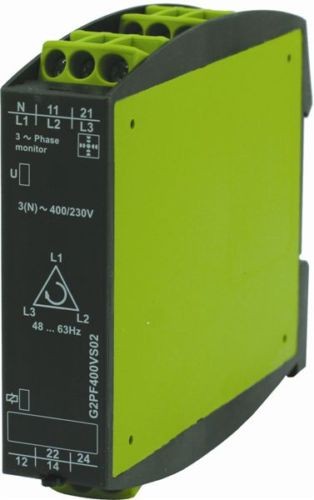

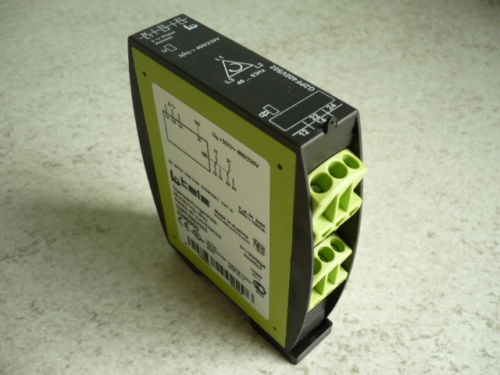

Monitoring voltage monitoring relays Tele Haase G2PF 400V S02

Ges.m.b.H. Tele Haase control devices Type G2PF 400V S01 - for VEB Platforms - Car Stage - Control - control stations - switch.





You are purchasing a unused fully functional phase sequence and phase failure monitoring (three-phase monitoring and detection of return voltage). The exact amount you can enter below the price under number.

Description: Monitoring Relays 3-phase mains - GAMMA series

- Phase sequence and phase failure monitoring
- Detection of reverse voltage (evaluation of asymmetry)
- Supply voltage = measuring voltage
- Contact type 2 PDT
- Width 22.5mm x 90mm height x depth 103mm
- industrial design
- Operating voltage 400 / 230V AC
- Switching capacity 5A / 250V AC (1250 VA)
- Measuring range 3 phase (N) 400/230 V 50/60 Hz
- Degree of protection IP40
- Rated impulse withstand voltage 4 kV
- Ambient temperature -25 - + 55 ° C


Dimensions: Width 22.5mm x 90mm height x depth 103mm.
