Tele Haase V2IM 10AL 10 monitoring relays VEO monitoring relay V2IM10AL10

102.999974

EUR 103,00

incl. 19 % VAT excl. shipping costs

Product.Nr. 151552239851

Available, enough stock

delivery time 2-4 days

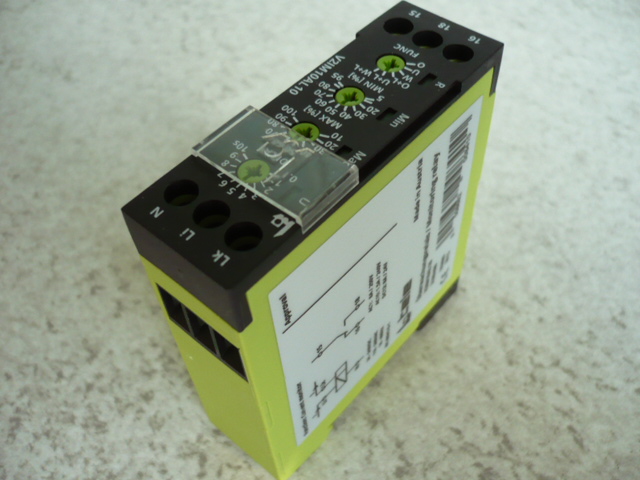

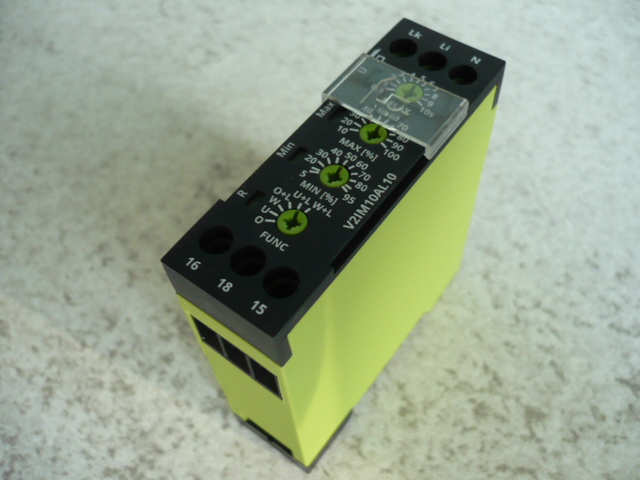

Tele Haase V2IM 10AL 10 monitoring relays VEO monitoring relay V2IM10AL10

Monitoring Relays Series VEO Tele Haase control Ges.mbH Type V2IM10AL10 - for inter alia VEB Platforms - Car Stage.





You are purchasing a monitoring relay. The exact amount you can enter below the price under number.

Description: Monitoring Relays - Series VEO

- Monitoring relay (multifunction)
- AC / DC current measurement
- Supply voltage = 24V-230V DC or AC 110-240V
- Contact type 1 change-over contact
- Width 22.5 mm x 67 mm length x depth 76mm
- industrial design
- Operating voltage 230V AC
- Range 10A AC DC (max. Switching voltage 400 VAC)
- Measure current 1 phase
- Degree of protection IP40
- Rated impulse withstand voltage 2.5 kV - Ambient temperature -25 - + 60 ° C


Dimensions: Width 22.5 mm x 67 mm length x depth 76mm.
