Tele Haase voltage monitoring G2UM300VL20 / G2UM 300V L20

137.000059

EUR 137,00

incl. 19 % VAT excl. shipping costs

Product.Nr. 150557964683

Available, enough stock

delivery time 2-4 days

Tele Haase voltage monitoring G2UM300VL20 / G2UM 300V L20

Voltage monitoring device for DC and AC voltage Tele Haase control Ges.mbH Type G2UM 300VL20 - for VEB Platforms - Car Stage - Control - control stations - switch - cabinet.





You are purchasing a unused fully functional Under voltage monitoring relays. The exact amount you can enter below the price under number.

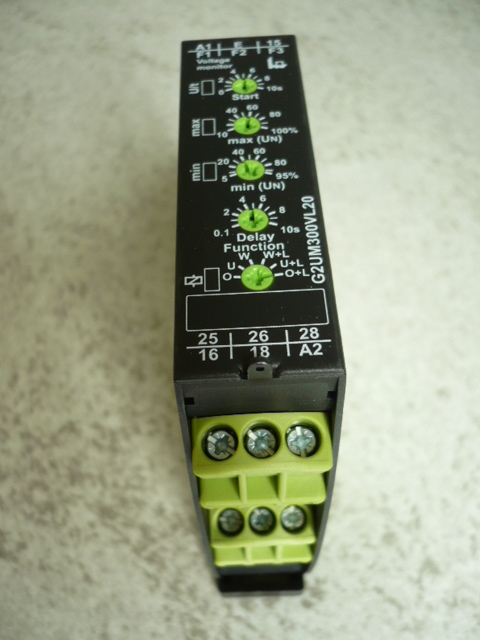

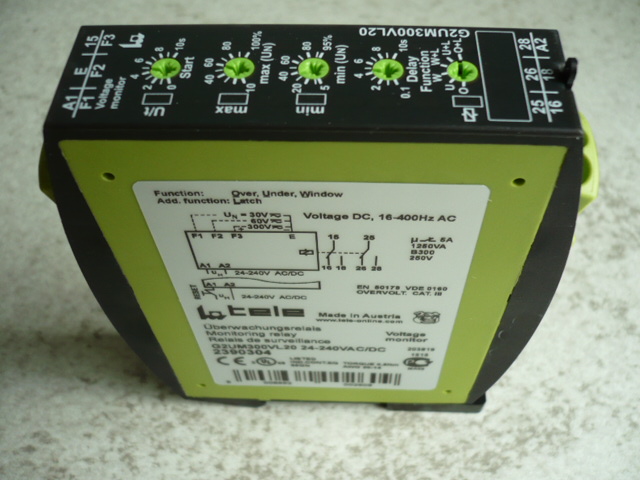

Description: Monitoring relay in 1-phase mains - GAMMA series

- Connection of the neutral conductor optional
- with adjustable thresholds separately adjustable trip delay and start-up suppression
- Nominal consumption 4,5VA (1W)
- Supply voltage = Zoom voltage 24 to 240V AC / DC selectable via transformer modules
- Contact type 2 PDT
- Width 22.5mm x 90mm x 103mm
- industrial design
- Operating voltage: 250V AC
- Switching capacity bayed 5A / 250V AC (1250VA)
- Range 1 phase (N) 300 V 16.6 to 400 Hz
- Degree of protection IP40
- Rated impulse withstand voltage 4 kV
- Ambient temperature -25 - + 55 ° C


Dimensions: Width 22.5mm x 90mm x 103mm.
